Marine Pump Solutions

MPS-1200

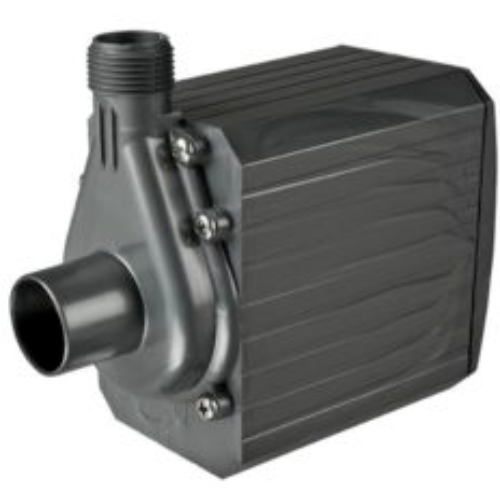

Marine Air Conditioner Pump MPS-1200, 120VAC, 1190 GPH

Specifications

  • Dimensions: 6.4"l x 3"w x 5.25"h
  • Watts: 110
  • Amps: 1.5
  • Voltage: 120VAC
  • Cord Length: 10'
  • Max Flow: 1190 GPH @ 1'
  • Inlet: 3/4" FPT
  • Outlet: 3/4" MPT
  • The MPS-1200 is a magnetically driven centrifugal water pump with ceramic shaft designed for marine air conditioners used in fresh or saltwater. It has no seals to wear and contains no oil. The only serviceable item is the impeller which can easily be cleaned or replaced when needed.

    FEATURES

    • The pump can be used submerged or inline.
      • Inline means connections are made directly to the pump inlet and outlet port
      •  3/4" NPT connections.
    • All Electrical Components are Encapsulated in Epoxy
      • No Seals to Wear
      • No Oil to Leak
    • Type 316 Marine Grade Stainless Steel Hardware
    • Uses Half The Power of Regular Driven Pumps
    • Reliable 24/7 performance
    • Voltage: 120 VAC (contact us for 220 VAC version)

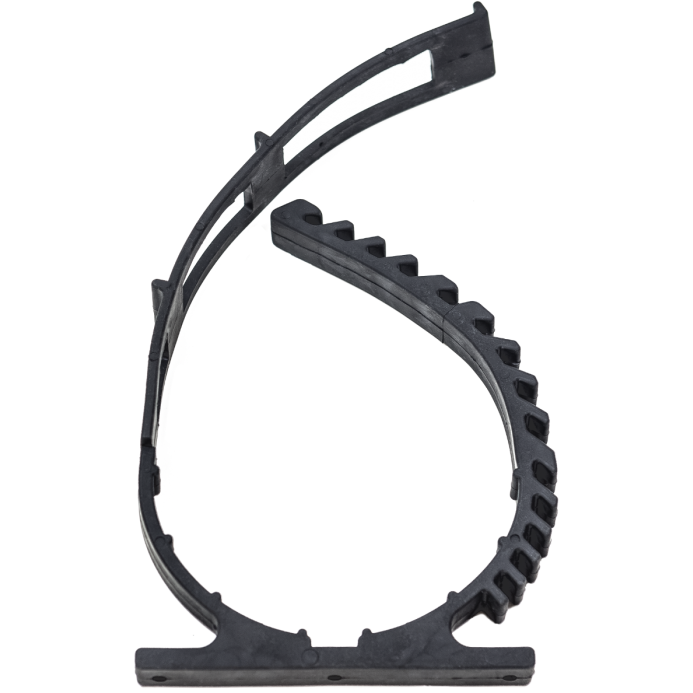

    • Includes: MPS-1200 Pump with 10' Power Cord, (1) Mounting Bracket, (2) Nylon Straps
    • UL / CUL Listed
    • Best in Class 5 Year Manufacturer Limited Warranty
    • Replacement Parts are Available
    • Includes Mounting & Fittings

    Flow Rate (GPH)
    NAME
    Flow at 1'
    Flow at 2'
    Flow at 3'
    Flow at 4'
    Flow at 5'
    Flow at 6'
    Flow at 7'
    Flow at 8'
    Flow at 9'
    Flow at 10'
    Flow at 15'
    Shut-Off (Feet)
    MPS 1200
    1190
    1130
    1065
    940
    900
    840
    795
    730
    630
    570
    -
    13' 7"
