Marine Pump Solutions

MPS-1800

Marine Air Conditioner Pump MPS-1800 120VAC, 1300 GPH

  Specifications

  • Dimensions: 6.4"l x 3"w x 5.25"h
  • Watts: 145
  • Amps: 1.55
  • Available Voltage: 120 VAC
  • Cord Length: 10'
  • Max Flow: 1300 GPH @ 1'
  • Inlet: 3/4" FPT
  • Outlet: 3/4" MPT

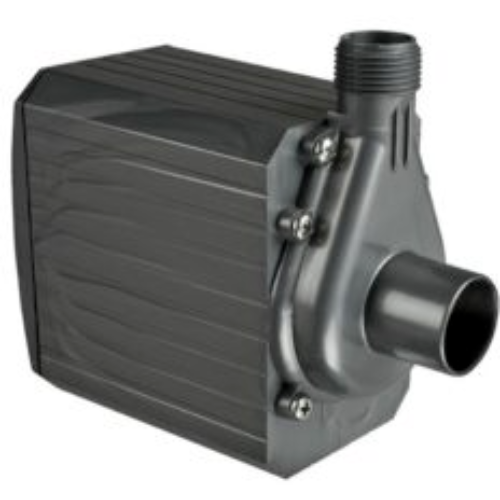

The MPS-1800 is a magnetically driven centrifugal water pump with a ceramic shaft designed for marine air conditioners used in fresh or saltwater. It has no seals to wear and contains no oil. The only serviceable item is the impeller which can easily be cleaned or replaced when needed.

FEATURES

  • The pump can be used submerged or inline.
    • Inline means connections are made directly to the pump inlet and outlet port
    •  3/4" NPT connections.
  • All Electrical Components are Encapsulated in Epoxy
    • No Seals to Wear
    • No Oil to Leak
  • Type 316 Marine Grade Stainless Steel Hardware
  • Uses Half The Power of Regular Driven Pumps
  • Reliable 24/7 performance
  • Available in 120 VAC or 230 VAC Power Configuration

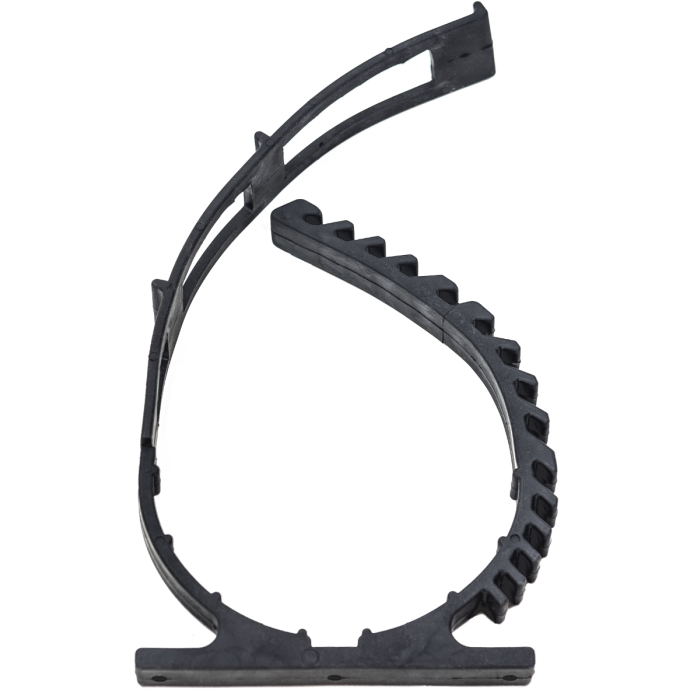

  • Includes: MPS-1800 Pump with 10' Power Cord, (1) Mounting Bracket, (2) Nylon Straps
  • UL / CUL Listed
  • Best in Class 5 Year Manufacturer Limited Warranty
  • Replacement Parts are Available
  • Product is supplied with Mounting & Fittings

Flow rate (GPH)

 Name MPS-1800
Flow at 1' 1300
Flow at 2' 1240
Flow at 3' 1170
Flow at 4' 1130
Flow at 5' 1040
Flow at 6' 1015
Flow at 7' 925
Flow at 8' 880
Flow at 9' 810
Flow at 10' 775
Flow at 15' 470
Shut-Off (Feet) 16' 6"
