Marine Pump Solutions

MPS-950

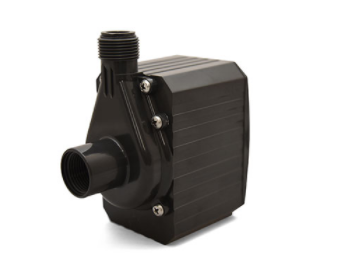

Marine Air Conditioner Pump MPS-950 120 VAC 1010 GPH

Specifications

  • Dimensions: 5"l x 3"w x 5.25"h
  • Watts: 93
  • Amps: 1.33
  • Available Voltage: 120VAC or 220VAC
  • Power Cord Length: 10'
  • Max Flow: 1010 GPH @ 1'
  • Inlet: 3/4" FPT
  • Outlet: 3/4" MP
  • FEATURES

    • The pump can be used submerged or inline.
      • Inline means connections are made directly to the pump inlet and outlet port
      •  3/4" NPT connections.
    • All Electrical Components are Encapsulated in Epoxy
      • No Seals to Wear
      • No Oil to Leak
    • Type 316 Marine Grade Stainless Steel Hardware
    • Uses Half The Power of Regular Driven Pumps
    • Reliable 24/7 performance
    • Available in 120 VAC or 230 VAC Power Configuration

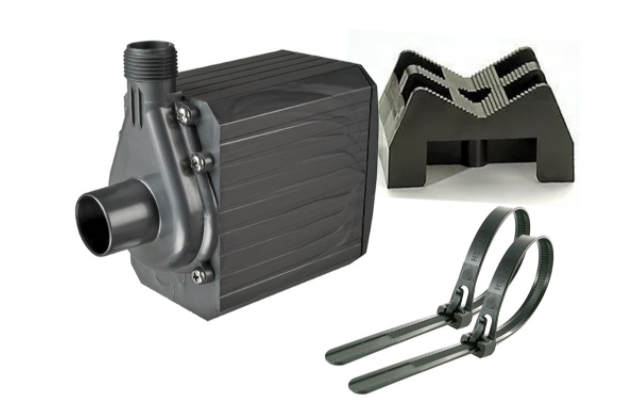

    • Includes: MPS-950 Pump with 10' Power Cord, (1) Mounting Bracket, (2) Nylon Straps
    • UL / CUL Listed
    • Best in Class 5 Year Manufacturer Limited Warranty
    • Replacement Parts are Available
    • Flow Rate (GPH)

 Flow at 1'            1010

Flow at 2'               930

Flow at 3'               840

Flow at 4'               770

Flow at 5'               770

Flow at 6'               710

Flow at 7'               650

Flow at 8'               600

Flow at 9'               530

Flow at 10'             475

Shut-off FT            13'7"
